- Combining 1.5 Gbps high-speed signal transmission (unidirectional) with 38.4 kbps low-speed signal transmission (bidirectional).
- Compatible with Ethernet and Gigabit Ethernet
(with an optionally available media converter)

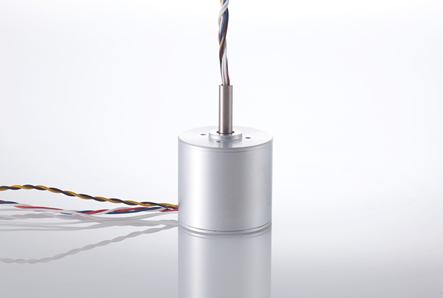

RLC-3W-34-1.5G-38.4K permits high-speed signal transmission (155 Mbps - 1.5 Gbps, unidirectional 1ch) and low-speed signal transmission (up to 38.4 kbps, bidirectional 1ch).
This product can be applied for video-monitoring devices such as a monitoring camera. It is appropriate for use for transmitting image signals from a camera to a control system or for transmitting low-speed signals for controlling a camera from a control system.
| Interface & Data Rate | ||
|---|---|---|
| High data rate signal transmission | No. of ch. | Unidirectional 1 channel Rotor ⇒ Stator |
| Data rate | 155Mbps - 1.5Gbps | |
| Signal level | CML | |
| Low data rate signal transmission | No. of ch. | Bi-directional 1 channel Stator ⇔ Rotor |
| Data rate | 38.4kbps | |
| Signal level | LVCMOS | |
| Power input(*1) | DC12V or DC24V ± 5% | |
| Mechanical | ||
| Dimensions(dia. xh)(mm) | 34 x 31.5(excl. center shaft) | |
| Weight | < 55g | |
| Rotation speed | 300 rpm | |
| Environmental | ||
| Temperature range | -20/+60 degC | |
| Vibration | 10Hz - 2000Hz 147m/s² | |
| Shock | 294m/s² 11ms | |
(*1) The power for RLC® is required at the rotor side and the stator side.
| # | Color | Symbol | Description | Lead Wire |
|---|---|---|---|---|
| 1 | Red | Rx | Low Data Rate Signal Input | UL AWG28 |
| 2 | Blue | Tx | Low Data Rate Signal Output | UL AWG28 |
| 3 | White | SG | Signal Ground | UL AWG28 |
| 4 | Yellow | +12V | +12V Input | UL AWG28 |
| 5 | Black | GND | Power Ground | UL AWG28 |
| 6 | White | Tx+ | CML Output+ | U.FL-2LP-04(Hirose) Impedance 50ohms |
| 7 | White | Tx- | CML Output- |
| # | Color | Symbol | Description | Lead Wire |
|---|---|---|---|---|
| 1 | Red | Rx | Low Data Rate Signal Input | UL AWG28 |
| 2 | Blue | Tx | Low Data Rate Signal Output | UL AWG28 |
| 3 | White | SG | Signal Ground | UL AWG28 |
| 4 | Yellow | +12V | +12V Input | UL AWG28 |
| 5 | Black | GND | Power Ground | UL AWG28 |
| 6 | White | Rx+ | CML Input+ | U.FL-2LP-04(Hirose) Impedance 50ohms |
| 7 | White | Rx- | CML Input- |
